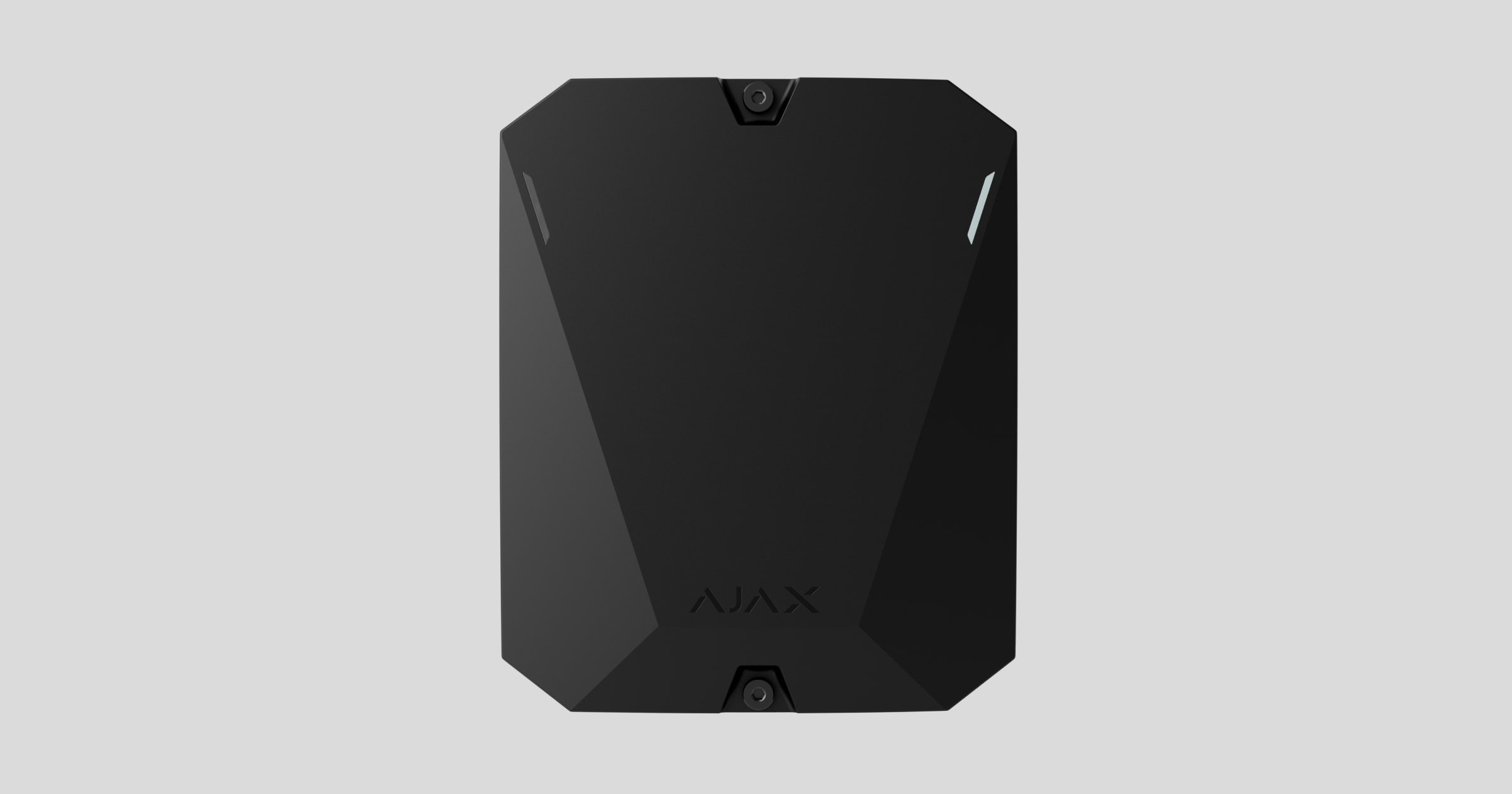

ASP Ajax MultiTransmitter (6EU) ASPwhite TpaHrzaizzep

Number of alarm/tamper zones18Supported detector contact typesNO, NC (without R), EOL (NC with R), EOL (NO with R)Resistance of the EOL resistor1 kΩ to 7.5 kΩAlarm signals processing modePulsed or bistableMain power supply110–255 V, 50/60 HzBackup power12 V DCSupported battery typeBattery with 4 or 7 A⋅h capacity (not included)Detector power supply12 V DC, up to 1 A for all detector power supply outputsProtection against dismantlingTamperRadio signal frequency band868.0–868.6 MHz or 868.7–869.2 MHz, depending on the sales regionCompatibilityOperates with all Ajax hubs, range extenders
Maximum radio signal powerUp to 7.29 mW (25 mW limit)Radio signal rangeUp to 2,000 m in the line of sightOperating temperature rangeFrom -10°С to +40°СOperating humidityUp to 75>#/p###Dimensions196 × 238 × 100 mmWeight805 gComplete set

  MultiTransmitter board
Body
Installation kit
Power cable
User Guide
