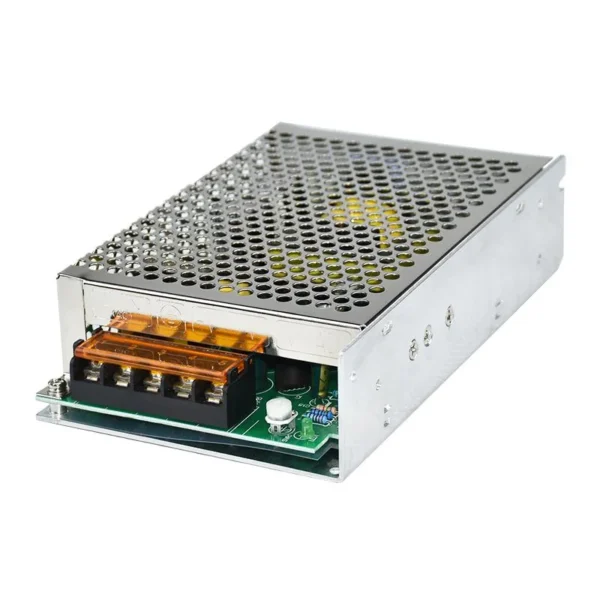

კვების ბლოკი MS-250-12

Model

MS-250-12

MS-250-15

MS-250-24

MS-250-27

MS-250-36

output

DC voltage

12V

15V

24V

27V

36V

Voltage tolerance

±1>#/p###

±1>#/p###

±1>#/p###

±1>#/p###

±1>#/p###

Rated current

20A

16A

10A

9A

6.9A

Current range

0~20A

0~16A

0~10A

0~9A

0~6.9A

Rated power

240W

240W

240W

243W

249.6W

Ripple&noise

150mvp-p

150mvp-p

200mvp-p

200mvp-p

200mvp-p

DCvoltage ADJ.range

±10>#/p###

±10>#/p###

±10>#/p###

±10>#/p###

±10>#/p###

input

Voltage range

90~132VAC/180~240VAC,255~373VDC

frequency

47~63HZ

AC current

5.5A/115VAC,2.8A/230VAC

efficiency

83>#/p###

83>#/p###

85>#/p###

85>#/p###

86>#/p###

Inrush current

Cold start current 18A/115VAC,36A/230VAC

Leakage current

< 3.5mA/240VAC

protection

overload

Rated output power115%~150%  start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

—–

—–

—–

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

Comply with EN55022,CLASSA

others

Dimension

199*110*50mm (L*W*H)

Weight/packing

0.85kg/24pcs/21kg/0.043 m 3;

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
