თერმული კამერა IP, Hikvision, HM-TD63C8-75C4L/G0/T2Y, 4MP, 2688 x 1520, 25 fps,, 75 mm (FoV: 11.7 x 9.4) or 100 mm (FoV: 8.8 x 7.1).

Name: თერმული კამერა IP, Hikvision, HM-TD63C8-75C4L/G0/T2Y, 4MP, 2688 x 1520, 25 fps,, 75 mm (FoV: 11.7 x 9.4) or 100 mm (FoV: 8.8 x 7.1). - PC.GE | პისიჯი - კომპიუტერული ტექნიკის მაღაზია
SKU: 19066
Price: 101102.00 GEL
Availability: InStock

პროდუქტის კოდი: 19066

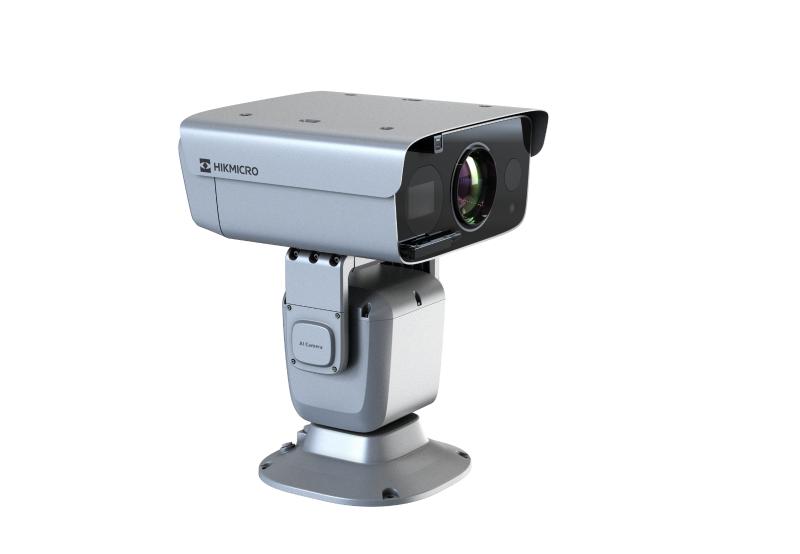

Thermal & Optical Bi-spectrum Network Positioning System
640 × 512 resolution 12 μm, NETD ＜35 mK (25 °C, F# = 1.0)Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance and exitTemperature exception alarm for fire preventionFire detection and smoke detection algorithmBuilt-in TPM2.0 encryption module for cybersecurityBuilt-in self-cleaning module for clear lensHigh quality detector with 10 years guaranteeNEMA-4X Standard, Anti-corrosion coating

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

101,102.00₾

Add to compare

Add to wishlist

10 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Thermal Module
Image SensorVOx Uncooled Focal Plane Arrays
Resolution640 × 512
Pixel Interval12 μm
Response Waveband8 μm to 14 μm
NETDLess than 35 mK (@25 °C,F#=1.0)
Focal Length13~130 mm
Focus ModeSemi-auto & Manual
IFOV0.092~0.92 mrad
ApertureF0.8~F1.25
Field of View
Wide：34.3°（H）*27.3°（V）

Tele：3.4°（H）*2.7°（V）
Min. Focusing DistanceWide：0.5m；Tele：10m
Digital Zoomx2, x4, x8

Optical Module
Image Sensor1/1.8″ Progressive Scan CMOS
Resolution2688 × 1520, 4 MP
Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON), B/W: 0.0002 Lux@ (F1.5, AGC ON) ,0 Lux with IR
Field of View55.56°(H)*32.4°(V)~1.86°(H)*1.06°(V)
Focal Length6-360mm, 60x
Aperture (Range)F1.59-5.42
Focus ModeAuto & Semi-auto & Manual
Shutter Speed1.1 s to 1/30,000 s
WDR120 dB
Optical DefogYes
Digital Zoomx2, x4, x8, x16

Image Effect
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.
Image Stabilization
Thermal channel supports EIS.

Optical channel supports OIS.

PTZ
Movement RangePan: 360° Continuous Rotate; Tilt: From -85° to + 85° (auto flip)
Pan SpeedConfigurable, From 0.01°/s to 110°/s
Tilt SpeedConfigurable, From 0.01°/s to 50°/s
Proportional ZoomYes
Presets300 in total
Patrol Scan8; Up to 32 Presets Per Patrol
Pattern Scan4; More Than 10 Minutes Per Pattern
Power Off MemoryYes
ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT StatusTurn On/Turn Off
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

Illuminator
IR DistanceUp to 2000 m
IR Intensity and AngleAutomatically adjusted

Smart Function
VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy± 8 °C (±14.4 °F)
Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
Smoke DetectionUp to 6km detection ability with 5m*5m smoke

Video and Audio
Main Stream
Optical channel

50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)

Thermal channel

25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288)
Sub-stream
Optical channel

50 Hz: 25fps (704 × 576, 352 × 288)

60 Hz: 30 fps (704 × 576, 352 × 288)

Thermal channel

25 fps (704 × 576, 640 × 512, 384 × 288)
Video Compression
Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Video and Image
Color Palettes15 palettes (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Icefire, Rain, Red hot,Green hot, Dark blue)

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network StorageMicroSD/SDHC/SDXC card (up to 512 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Interface
Alarm Input7-ch inputs (0-5 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10>#/span###
Audio OutputLinear Level; Impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

1, RS-485 interface
Analog Video Output1.0 V [p-p]/75 Ω, BNC for thermal channel

General
Power36VDC ± 20%, 48VDC ± 20%, two-core terminal block
Power Consumption7 A, max. 150 W
Work Temperature/HumidityFrom -40°C to 70°C (-40°F to 158°F); Humidity: 95% or Less
WiperYes
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension543.8mm × 399.7mm × 390.3 mm (21.41” × 15.74” × 15.37”)
Approx. 27.5 kg (60.627 lb)

Detection Range Table/Smart Function Range
VCA Range for Humans1300m
VCA Range for Vehicles3900m

Approval
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);

IC (ICES-003: Issue 7)
Safety
CB: IEC 62368-1: 2014+A11;

CE-LVD: EN 62368-1: 2014/A11: 2017;
Environment
CE-RoHS：2011/65/EU,

WEEE: 2012/19/EU,

Reach：Regulation(EC) No 1907/2006
ProtectionIP66: IEC 60529-2013
OtherNEMA 4X (NEMA 250-2018)
